Main Page > Fire Alarm Systems > Conventional Smoke Detectors > > LOREX LR-2100-R12-R24 Photoelectric Smoke Detector with Relay Output

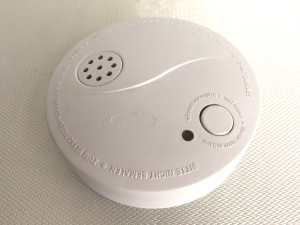

LOREX LR-2100-12-24 Optical Smoke Detector with Relay Output

LOREX LR-2100-12-24 Optical Smoke Detector with Relay Output

4-Wire Optical Smoke Detector with Relay Output Function
LOREX LR-2100-12-24 smoke detector uses a specialized smoke chamber design, which could sense the presence of smoke particles produced by fast combustion or slow smoldering fire.
The LR-2100-12-24 detectors have a integral relay and sounder.

Key Feature

  • 4-Wire operation
  • Built-in Alarm Relay (NO/NC)
  • Built-in Sounder
  • 12V and 24VDC options
  • Advanced electronic technology
  • Proven detection performance
Price : On Request - In Stock.

Technical Specification

Order Code :
LR-2100-R12
LR-2100-R24
Supply Voltage :
12V DC
24V DC
Alarm Current :
20mA
10mA
Relay Output :
NO or NC ( Jumper Selection )

Internal Sounder :

YES
Alarm Sounder :
85dB @3m
Alarm LED Indicator :
YES
Mounting Type :
Ceiling Mount (Base Including)
Relay Contact Current :
1A @24V
Color :
Renk :
White
Case :

ABS Plastic

Working Temperature :
0ºC ~ 40ºC
Dimension :
13cm x 3,7cm
Humidity :

%10 ~ %90



Other Products We Recommend

LR-4222C3 - Alarm
Price:On-Request
Solo A4 - Smoke Aerosol
Price:On-Request
Solo C3 -CO Aerosol
Price:On-Request
Smoke Detector with Relay Connection Diagram
  • Design and specifications are subject to change without prior notice.
