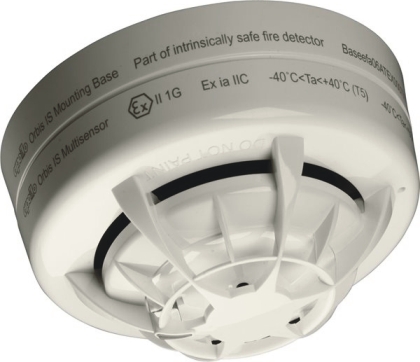

APOLLO Orbis ORB-ON-53028-APO I.S. Multisensor with Flashing LED

Apollo Orbis I.S. Multisensor with Flashing LED

The Orbis IS Multisensor Smoke Detector benefits from the same false alarm technology as the Optical Smoke Detector with the addition of a heat sensing element.

The environmental performance of the multisensor detector is the same as that of the Orbis IS optical smoke detector. Also classification and BASEEFA Certificate Number are the same as for the optical smoke detector. Operating and storage temperature: –40°C to +70°C Operating temperature is restricted by the intrinsic safety gas classification. Class T5: –40°C to +45°C Class T4: –40°C to +60°C The detector must be protected from conditions of condensation or icing.

Key Features

  • Reduces false alarms
  • Sensitive to fast burning, flaming fires
  • Improved sensitivity to black smoke
  • Compensation for slow changes in sensitivity
  • Algorithms for reliability of alarm
Price : On Request



Technical Specifications

Model No - Tanım :
55000-121APO Konvansiyonel Sıcaklık Dedektörü
Applications :
  • B&Bs/guest houses
  • Cafes
  • Restaurants
  • Retail
  • Small to medium buildings
  • Dusty environments
Chamber type : Chevron
Heat classification
A1R
Polarity :
L1 & L2 are polarity insensitive.
Holding voltage (min) :
6V
Holding voltage (max) :
6V
Holding voltage :
6 to 6V
Minimum voltage to light alarm LED :
12V
Alarm load :
420Ω in series with 2V drop
Humidity (min) :
0% RH
Humidity (max) :
95% RH
Humidity Note :
no condensation or icing
Humidity : 0% to 95% (no condensation or icing)
Operating temperature (min) :
-20°C
Operating temperature (max) :
90°C
Operating temperature :
-20 to 90°C
IP rating Value :
IP23D
Storage temperature (min) : -30°C
Storage temperature (max) 120°C
Storage temperature -30 to 120°C
Standards EN 54-5
Approvals
  • LPCB
  • SBSC
  • CPR
Weight 80gr
Colour White
Materials housing Polycarbonate
Product length 42mm
Product diameter
100mm
