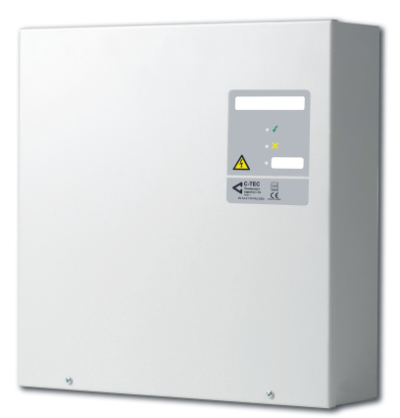

CTEC BF362-5 - 24V 5A Switch Mode PSU


  • - VDS certified to EN54-4 (1997/A2:2006).
  • - Ideal for powering beam detectors, auto-dial communicators, aspirating smoke detectors, auto-open vent systems, auxiliary sounder systems or any other device performing a mandatory function of a fire alarm system.
  • - Deep discharge battery protection and EN54 compliant reporting of battery impedance faults.
  • - Includes a single-pole volt-free changeover relay that switches for any fault condition.
  • - Three LED indicators - supply present, general fault and auxiliary fault (for optional connection to third-party equipment).
  • - Link selectable battery charging capacity.
  • - Environmentally-friendly charging circuit - dissipates just 0.35W compared to the industry norm of 2.55W.
  • - Supplied in a tough, durable metal box.
  • - Optional 'caged' and 'PCB-only' versions available with exactly the same electronics (order code BF362-5/E and BF362-5 respectively)
Price : On Request - In Stock.

Technical Specification
Approval Certification : Certified to EN54-4 by the VdS (0786-CPR-20892) / (G09197)
Application & Operation : A boxed Mains to regulated DC power supply providing 5A @ 24V DC. Fully compliant with EN54-4, it includes a single pole volt-free changeover relay that switches for any fault condition.
Mains Supply : 230V 50/60Hz.
Mains Rated Current : 1.35A maximum. (310 VA).
Total Output Current Limited To : 5A (Max. continuous output current).
Output : 4.6A DC current or 4A DC current (I max a, if PLK2 link fitted), 1A charge current; 5A DC current (I max b, charging turned off).
Battery Charge Capacity : 7 Ah to 18 Ah.
Max Battery Size and Type : 2 x 12V 18 Ah VRLA
Indicators : Supply Present (Green); General Fault (Amber); Auxiliary Fault (Amber); Hazardous Voltages Present (Red)
Connections : Mains Input (CONN1); Supply Output (CONN5); Battery Input (CONN5); Fault Relay (CONN4); Charge Off Input (CONN4). Battery Monitoring On/Off Link (PLK1); Battery Charge Current Link (PLK2); High Temp. Output (PL2).
Product Dimensions : 404 W x 404 H x 110 D mm.
Construction & Fİnish : Metal lid and base; RAL7035 textured.
IP Rating : IP30 (designed for indoor use only).
Weight : 5.25kg (without batteries).
Operating Conditions & Temperature : -5ºC to +40ºC. Max relative humidity: 95%.
