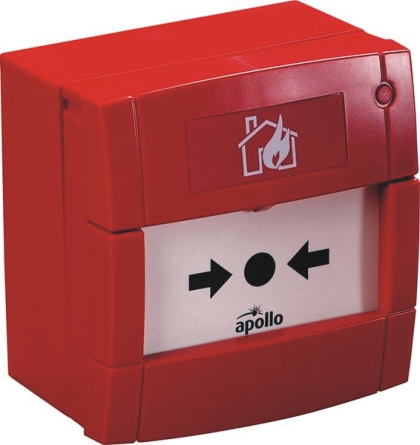

APOLLO 55100-031APO Conventional IS Manual Call Point

APOLLO 55100-031APO Conventional IS Manual Call Point

The Conventional IS Manual Call Point has been designed to operate on conventional intrinsically safe fire detection systems. Designed specifically for use in atmospheres in which explosive mixtures are or may be present, certain design considerations must be observed. The Manual Call Point is available in two versions, indoor and outdoor in either red or yellow.

Key Features

  • Can be used for applications where smoke detectors are unsuitable
  • Ideal for environments that are dirty or smoky under natural conditions
  • Wide operating voltage
  • Flashing LED and magnet operated test switch option



Price : On Request



Technical Specifications

Model No - Description :
Apollo 55100-031APO Conventional IS Manual Call Point
Applications :
  • B&Bs/guest houses
  • Cafes
  • Restaurants
  • Retail
  • Small to medium buildings
  • Dusty environments
Chamber type : Chevron
Heat classification
A1R
Polarity :
L1 & L2 are polarity insensitive.
Holding voltage (min) :
6V
Holding voltage (max) :
6V
Holding voltage :
6 to 6V
Minimum voltage to light alarm LED :
12V
Alarm load :
420Ω in series with 2V drop
Humidity (min) :
0% RH
Humidity (max) :
95% RH
Humidity Note :
no condensation or icing
Humidity : 0% to 95% (no condensation or icing)
Operating temperature (min) :
-20°C
Operating temperature (max) :
90°C
Operating temperature :
-20 to 90°C
IP rating Value :
IP23D
Storage temperature (min) : -30°C
Storage temperature (max) 120°C
Storage temperature -30 to 120°C
Standards EN 54-5
Approvals
  • LPCB
  • SBSC
  • CPR
Weight 80gr
Colour White
Materials housing Polycarbonate
Product length 42mm
Product diameter
100mm
